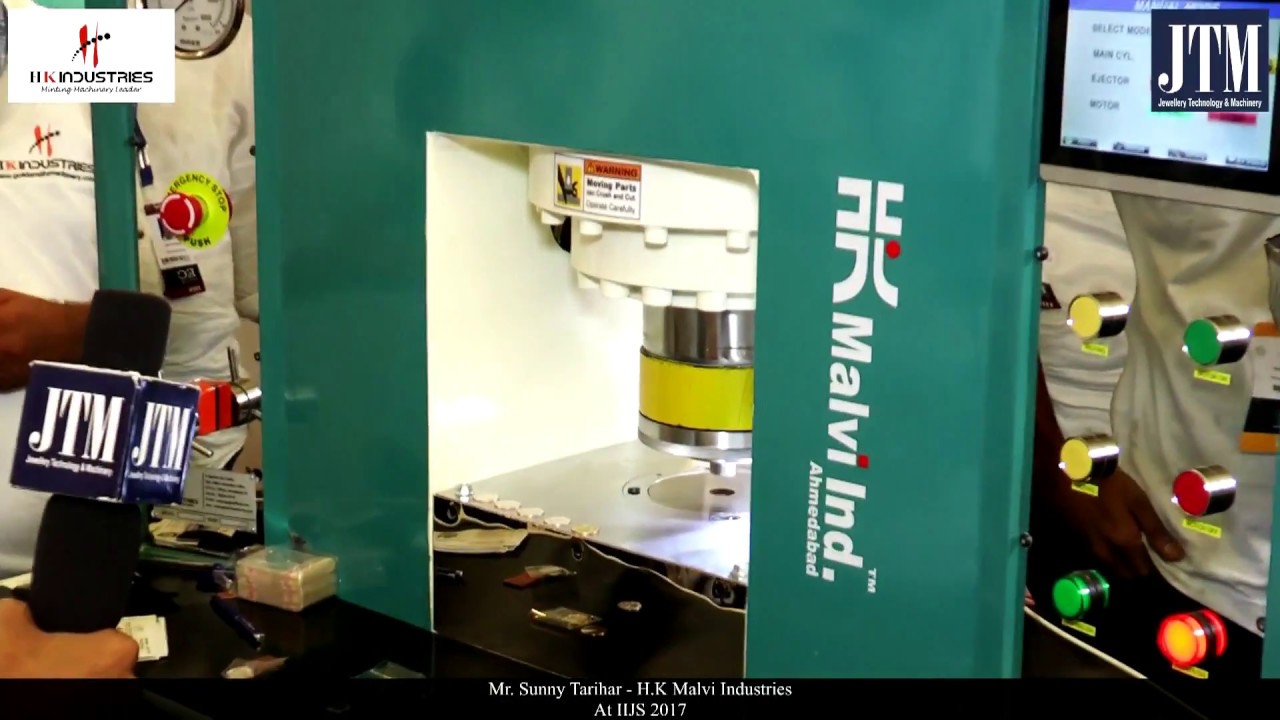

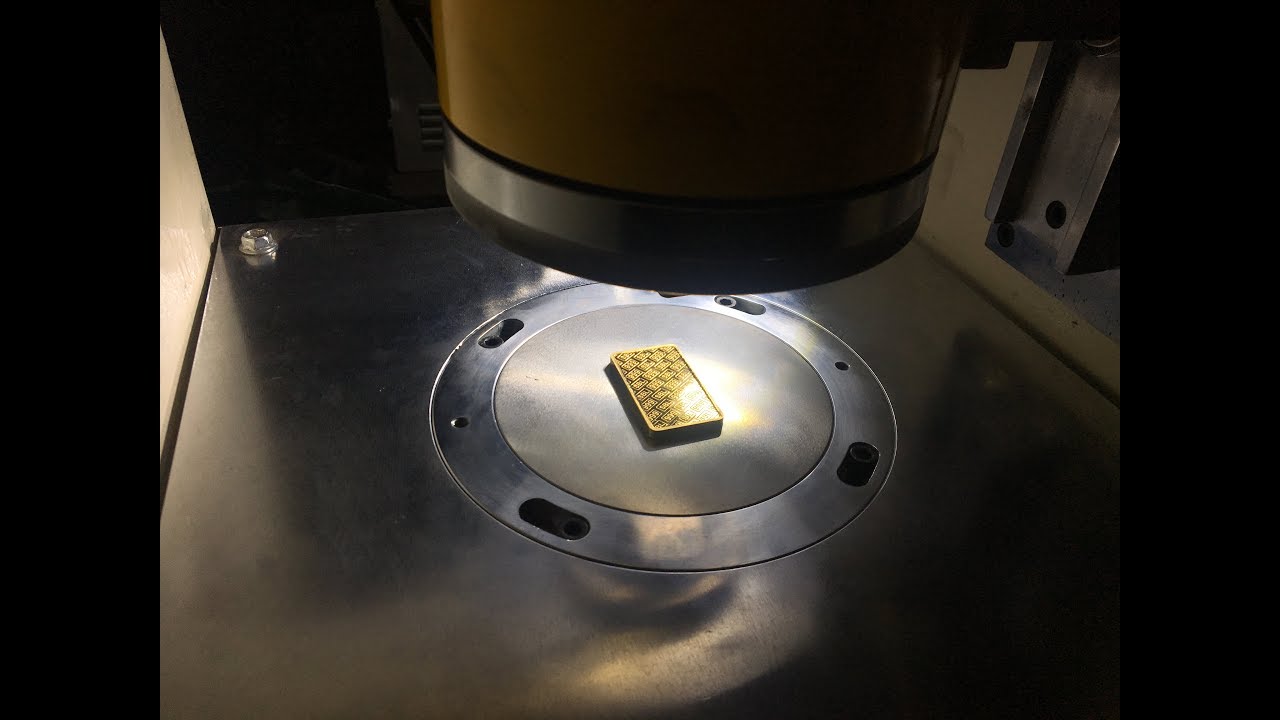

Hydraulic Automatic Gold Coin Making Machine
Auto embossing & ejecting system.
Electric operating PLC based control panel
High possible embossing forces.
High stroke rate & faster production.
Multiple stroke with variable force and die lifting.
Number of pieces embossed information display.
Touch screen menu navigation.
High/Low pressure system having indicator.
Additional information
| Model from 100 and 200 Tons | HEP 100 | HEP 150 | HEP 200 |
|---|---|---|---|
| Capacity of Tons | 100 | 150 | 200 |
| Useful Stroke (Auto/Manual) | 80/50 | 80/70 | |
| Working Speed (Stroke 50mm) | 16-18 | 15-15 | |
| Electric Motor | 3HP | 5HP | 7HP |
| Oil Tank Capacity (Litres) | 60 | 80 | 100 |
| Working Approx (Auto/Manual) | 1150/980 Kg | 1720/1440 kg | 1900/1630 kg |
Product Gallery
Product Video
Related Videors
Hydraulic Gold and Silver Coin Making Machine
Embossing & ejecting system.
Electric operating PLC based control panel
Highest possible embossing forces.
High stroke rate & faster production.
Multiple stroke with variable force and die lifting.
Number of pieces embossed information display.
Touch screen menu navigation.
High/Low-pressure system having indicator.
Additional information
| Model from 100 to 200 Tons | HEP 50 | HEP 100 | HEP 150 | |
|---|---|---|---|---|
| Capacity of Tons | 50 | 100 | 150 | |
| Useful Stroke: Auto/Manual | 50 | 80/50 | 80/50 | |
| Working Spees (Stroke 50mm) | 16-18 | 16-18 | 16-18 | |
| Electric Motor | 2HP | 3HP | 5HP | |
| Oil Tank Capacity in Litres | 40 | 60 | 80 | |
| Working Approx Auto/Manual | 580kg | 1150/980kg | 1720/1440kg | |
Product Gallery
Hydraulic Silver Coin Making Machine - Heavy Duty Series
Auto/Manual embossing & ejecting system.
Electric operating PLC based control panel.
Highest possible embossing forces.
High stroke rate & faster production.
Multiple stroke with variable force and die lifting.
Number of pieces embossed information display.
Touch screen menu navigation.
High/Low-pressure system having indicator.
Additional information
| Model from 100 to 200 Tons | HEP 300 | HEP 350 | HEP 400 |
|---|---|---|---|
| Capacity of Tons | 50 | 150 | 100 |
| Useful Stroke: Auto/Manual | 80 | 100/80 | 100 |
| Working Speed (Stroke 50 mm) | 14-15 | 14-15 | 15 |
| Electric Motor | 10HP | 10HP | 10HP |
| Oil Tank Capacity in Litres | 200LT | 200LT | 250LT |
| Working Approx: Auto/Manual | 3800/3600kg | 4800/4600kg | 5200/4900kg |
Product Gallery
